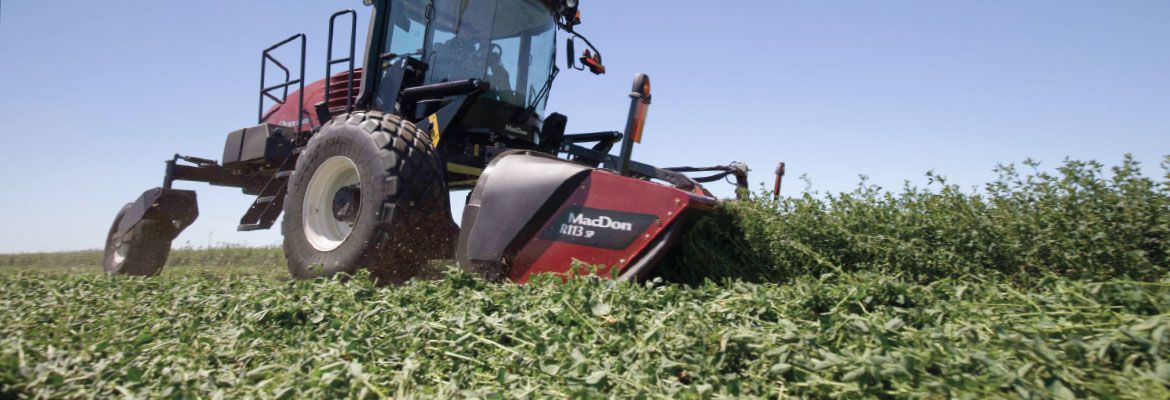

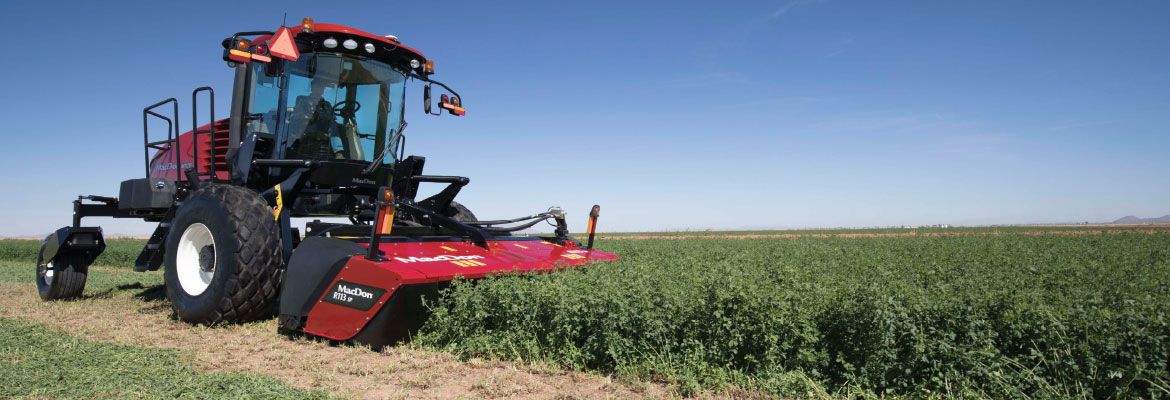

Speed, precision, performance, that's exactly what you get with the MacDon M1170 Windrower and R1 Series Disc Header. Our patented CrossFlexTM suspension and low-profile, forward-mounted cutting discs help deliver a smooth, clean cut at in-field speeds of up to 14 mph (22.5 km/h).

The two-stage controls allow for faster and more precise positioning of the header lift, and customizable One-Touch-Return buttons can be programmed to control the header's height, tilt, and cutting speed. With all this and more, it's easy to see why the M1170 Windrower and R1 Series Disc Header are a knockout combo.

R1 Series SP Disc Header Specifications

Size Weight Number of Cutting Discs/Blades Drive (Maximum Hydraulic Power) Cutting Speed/Knife Tip Speed Cutting Angle Range Gear Train Protection Hay Conditioner Option: Type/ Length Options
13 ft. (4 m) 4650 lb (2109 kg) 8/2 127 HP (94 kW) 1,800 to 2600 rpm / 131 mph (210.8 km/h) to 189 mph (304 km/h) 0-8 below horizontal Shearable key in each spindle Inter-meshing steel / 129” (328 cm), polyurethane rolls / 129” (328 cm), no conditioner Tall crop divider
